Fuzing: Two Z (69) D, ZtZ 89 B and a charging head. Three fuzes in all are in containers in addition to charging head.

CONSTRUCTION. The body is T-shaped in cross section. The longitudinal axis of the container is formed by two sheet steel plates 26 1/2 by 70 inches. Indented together with circular spot welded pressings and welded along their greater dimensions to two U-shaped girder pieces. Two circular sheet steel plates from the nose and tail bulkheads. A slightly domed sheet steel nose is welded to the nose bulkhead and is reinforced by a tu-bular steel sheet approximately 8 inches long welded to both the bulkhead and the do-med nose. A sheet steel top plate is welded to the upper U-shaped grider to form an arcline canopy extending 13 1/2 inches on either side of the grider. The top plate is re-cessed to receive the H-type suspension lug and to accommodate the fuze pocket. (See fig. 116.)

The central support for the tail unit is a steel bar welded to a square plate which in turn, is riveted to the tail bulkhead. A flanged circular sheet steel plate is spot welded to the tube and tail cone for added support. The tail fins consist of two layers of sheet steel pressed together, each layer being part of the adjoining quadrants of the tail cone. Fu-zes are housed in a thin sheet steel box inside the tail cone and are welded to the tail bulkhead. An inspection hatch in the tail gives access to the fuzes.

On the under side of the fuze box are two steel clips which accomodate the 4-ounce penthrite charge provided to destroy the electromagnet generating units attached to the bottom end of fuze. Five sections containing incendiary bombs can be arranged in each side of the center bulkhead of the container. Each sec-tion is separated by semicircular sheet steel separator plates. The bombs are held in place by five sheet steel retaining bands which are drawn tightly around the bombs and container by turnbuckles. Each strap is held in position at the lower edge of the vertical position by a large split pin an-chored to a bracket support which carries a small charge consisting of two detonators. Two rectangular steel plates near the nose hinge outward when the forward band is se-vered and form air brakes.

The fuze pocket accommodates the charging head from which six orange colored cables are led to the fuzes. Two of the cables are connected by a fuze charging attachment to the head of the (89) B fuze; the remaining four cables are connected in pairs to two bayonet joint charging attachments housing the (69) D fuzes. Six leads pass from the fuzes to a junction box in the tail unit. Leading from the junction box are three cables for each of the six points (five retaining bands and the destroying charge on the steel fuze box), plus six black colored cables, all of which are enclosed in a green cover. Four of these leads branch off to each of the five retaining bands (two wires to each det.) and four leads branch off to the self-destroying charge. All detonators on the (89) B fuze circuit are instantaneous while the detonators on the (69) D fuze circuits have delays varying from 1 to 6 seconds, the variance between detonators being 1 second. They are so pla-ced that the 1-second delay is on the band nearest the tail unit, the 2-second delay is next, etc. The 6-second delay detonator is used on the self-destroying charge of the fuze box. On release, an electrical charge is imparted to one of the plungers of the charging head, depending on which of the fuzes is to be used. The fuze functions and ignites a black powder pellet which drives a piston forward. A projection of the pis-ton strikes a soft iron core in the center of a coil of copper wire enclosed within a mag-netic sheath. The rapid displacment of this iron core induces an electric current in the coil which is passed to the junction box and then to the detonators which sever the bands.

Containers can be dropped from low altitudes with the (89) B fuze and instantaneous de-tonators used to secure a heavy concentration of bombs, or container can be dropped from high altitudes with the (69) D fuze and varying delay deto-nators used. This would give a wide dispersion of the bombs.

AB 1000-2

B 1.3 EZ

B 2 EZ

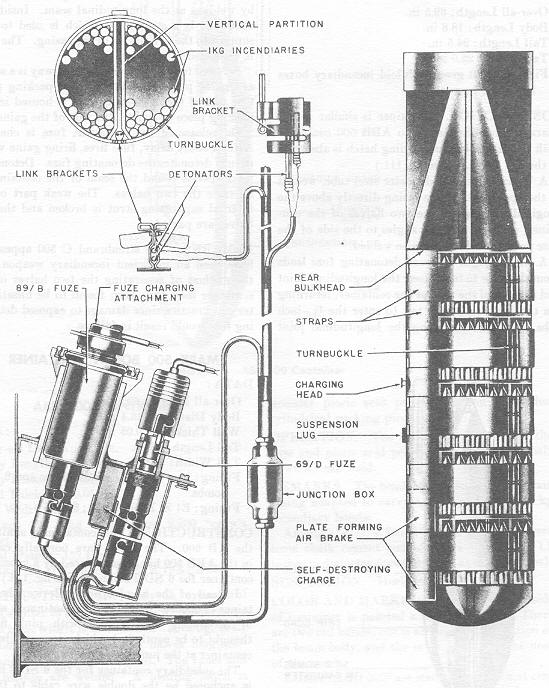

Figure 116 – AB 1000-2 Container
