| GERMAN EXPLOSIVE ORDNANCE - BOMBS, BOMB FUZES, ROCKET, LAND MINES, GRENADES AND IGNITER |
| Chapter 1 |
| GERMAN BOMBS |
| SD 50 (D50; D50D; D50L) |
| DATA: |
| Over-all Length: 43.0 in. |
| Body Length: 23.5 in. |
| Body Diameter: 8.0 in. |
| Wall Thickness: 0.4 wall to 1.8 in. nose. |
| Tail Length: 23.5 in. |
| Tail Width: Type I, 11 in.; Type II, 10.5 in. |
| Filling: TNT. |
| Weight of Filling: 16.4 kg. |
| Total Weight: 55.0 kg. (approx.) |
| Chg/wt Ratio: 30%. |
| Fuzing: 55; 55A; ElAZ (38) for water targets. |
|
CONSTRUCTION. The body of the SD 50 is a one-piece steel casting. When machined down it has provisions for one transverse fuze pocket just forward of the horizontal car-rying lug. It is threaded at the base to accept a male type filling lug. (See fig. 23.) |
|
Either the type 1 or type 2 tail assemblies can be used. Type 1 has a cast alloy adapter with sheet steel vanes. The four vanes are not supported by struts. Type 2 is a one-piece construction assembly of cast magnesium alloy with no strut supports for the tail fins. |
|
In addition to the horizontal carrying lug, there are threads machined in the nose to take an "eye" type lug for vertical suspension. |
|
SUSPENSION. Horizontal or vertical. |
|
COLOR. Bomb is dark green over-all and tail cone striped with red. |
|
REMARKS. A small angle iron kopfring is normally fitted to the bomb. In addition to the kopfring a 24-inch dinort rod may be added to obtain prepenetration detonation of the bomb. An extension rod used with the (55) A can be used for the same purpose. |
|
When the bomb is used against water targets, the tail fins are removed. It is claimed that the ballistics are not changed by removing the tail fins providing the dropping range is less than 200 meters. The ElAZ (38) fuze with a maximum delay of 5 seconds allows for water travel of 12 to 18 meters. |
|

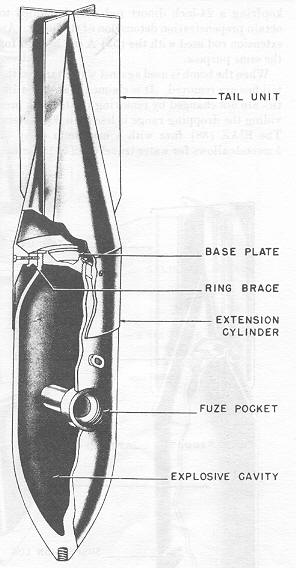

Figure 23 – SD 50-kg Bomb |
|
|
 |
