GERMAN EXPLOSIVE ORDNANCE - BOMBS, BOMB FUZES, ROCKET, LAND MINES, GRENADES AND IGNITER |
Chapter 1 |
GERMAN BOMBS |
SC 50 GRADE II – JB, JC, J, J/2 |
DATA: |
Over-all Length: 43.3 in. |
Body Length: 26.4 in. |
Body Diameter: 8.0 in. |
Wall Thickness: 0.16 in. to 0.24 in. |
Tail Length: 16.1 in. |
Tail Width: 11.0 in. |
Filling: Cast TNT; powdered Amatol; or cast Trialen. |
Weight of Filling: 21 to 25 kg. |
Total Weight: 48 to 55 kg. |
Charge/Weight Ratio: 46%. |
Fuzing: 5, 8, and 25. ElAZ (38) for water targets. |
CONSTRUCTION. The JB has a one-piece nose and body. The base is welded to the body. The JC has a pressed steel nose and drawn steel body. Here the nose and base are welded to body. The J was the early model of the JB and they are identical in con-struction. The J/2 is very similar to the JC, the quality of the steel being the real diffe-rence. It was produced only in limited quantities. |
The sheet steel tail cone is riveted to a ring which is secured to the bomb body by eight screws. The small holes on the fins are used to attach screamers. (See fig. 11.) |
Grade II can also be modified for use against water targets. Same modification and re-sults as for Grade I are claimed. |
SUSPENSION. Either horizontal or vertical. |

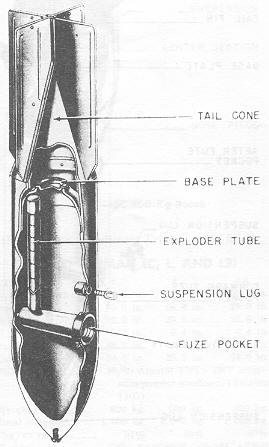

Figure 11 – SC 50 Grade II Bomb |
|
