| GERMAN EXPLOSIVE ORDNANCE - BOMBS, BOMB FUZES, ROCKET, LAND MINES, GRENADES AND IGNITER |
| Chapter 1 |
| GERMAN BOMBS |
| PC 1000-kg ESAU |
| DATA: |
| Over-all Length: 85.5 in. |
| Body Length: 58.5 in. |
| Body Diameter: 19.8 in. |
| Wall Thickness: 1.5 in. wall to 13.4 in. point. |
| Tail Length: 32.0 in. |
| Tail Width: 19.8 in. |
| Filling: TNT and Wax. |
| Weight of Filling: 160 kg. |
| Total Weight: 1,000 kg. |
| Chg/Wt Ratio: 16%. |
| Fuzing: (28) A or 35; Extension Cap II. |
|
CONSTRUCTION. The body of the PC 1,000 kg armor-piercing bomb is of one-piece for-ged steel. The nose is very heavy and this construction decreases the size of the explo-sive cavity. There is one fuze pocket located aft the suspension lug. Through the center on the explosive cavity is additional exploder tube. (See fig. 30.) |
|
The tail unit is constructed of magnesium alloy and is attached in the same manner as used with the SC 1,000 series. |
|
SUSPENSION. Horizontal. This bomb uses a suspension band with the H-type lug secu-red to it. At 90° from the suspension lug in both directions are two trunnion bolts for dive-bombing. |
|
COLOR. Sky blue with aluminum tail. Blue stripe on tail cone. |
|

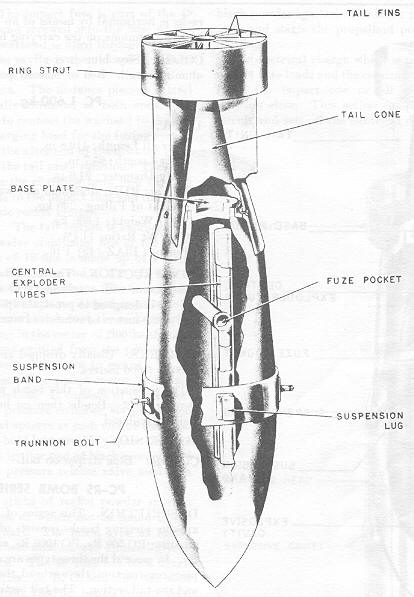

Figure 30 – PC 1000-kg Bomb |
|
|
     |
