GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 12 - CLOCKS AND ASSOCIATED DEVICES |
ARMING CLOCKS |
UES II |
The UES II is a hydrostatically operated clock requiring an initial pressure equal to 17 feet for starting; however, it will continue to run even if pressure is removed. This clock can be set to arm the mine at any time from a half hour to six hours, in 15-minute inter-vals, or from a half day to six days at six-hour intervals. The purpose of this clock is to delay the mine circuit to prevent premature firing until the mine unit has properly orien-ted itself. |

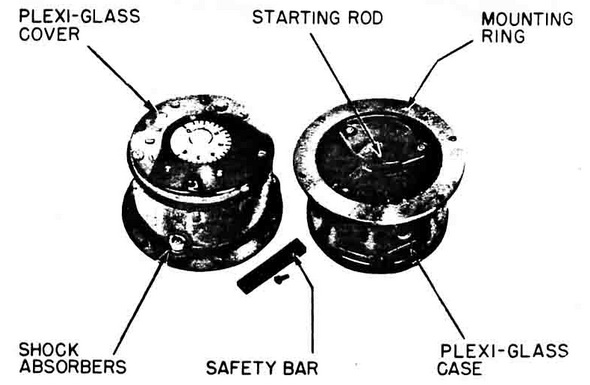

Figure 265 – UES II and UES IIa |
|

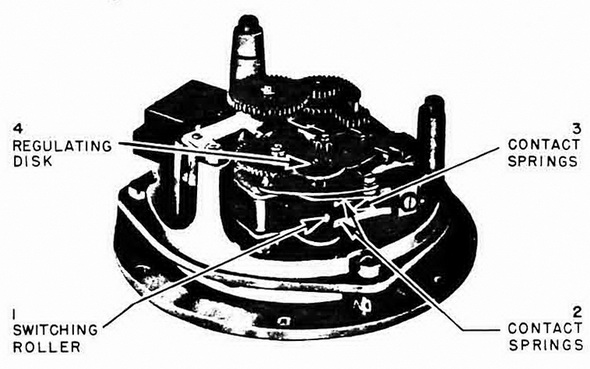

Figure 267 – UES II/IIa |
|
