GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 8 - EXPERIMENTAL UNITS |
DEVELOPMENT OF OPTICAL MINE-FIRING MECHANISMS |
SVK Test Model 2 |
Unit Construction. This model differed from the first as follows: |
1. The mirror and B cell were removed and replaced by a photo-cell in ring form in-stalled around the A cell. |
2. The cells were made more responsive to the blue-green end of the spectrum. (The manner in which this achieved is a trade secret of the Infram Firm.) |
3. The cells were selected from the total number available with a view to pairing those with the most similar sensitivities. |
4. The neon-tube relay was replaced with an I relay, form C or form Fu. |
5. Exposure of the ring photo-cell to the direct rays of the sun was prevented by means of a sun shade suspended on a rotatable ring made of hardened steel wire and magnetizied to maintain constant orientaiton. |
Test Results. Tests were conducted in the Ottersee with satisfactory results. (The Ottersee is apporiximately three miles wide and 12-1/2 miles long, and ranges up to 590 feet in depth.) The target vessel was 65 feet in length, with a 13-foot beam extended to 40 feet by means of wooden floats secured alongside. Firing was obtained at a daylight inteneity of 3,000 lux (beginning evening twilight) in depths of 210 to 325 feet. Test with the same unit at Hela on the Baltic resulted in self-firing during high seas on a sunny day. |

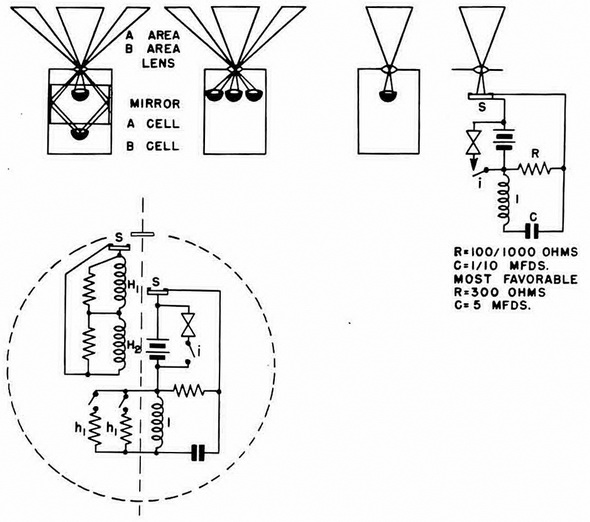

Figure 260 – Optical Mine-Firing Mechansims |
|
