GRAVITATION MINE UNITS |
The gravitation unit (figure 259) is an experimental and not-too-succesful attempt to produce a mine-firing unit which operates on changes in the gravitational effect on a mine due to the transit of a ship over the mine. It was in the idea stage, and was not developed suficiently for production. No samples of equipment have been captured. |
The gravitation unit is an idea only, worked out as a result of some calculation made by the Askania Werke in Berlin in cooperation with the Geophysical Institute at Potsdam. The gravitational effect of a ship, measured at P, is of second order. The mass of dis-placed water whose center of gravity is G1 is displaced by the equal mass of the ship whose center of gravity is G2. Because the distance P - G2 is greater than P - G1, there is a difference in gravitational effect at P such that a mass at P with a ship overhead has a smaller weight than the same mass without the ship overhead. This difference in gravity is very small, even when caused by a large ship; but it can be measured by high-presision apparatus of the type used in geophysical research. |
The Mechanism. The type of mechanism visualized for this measurement is similar to the Askania gravity balance. Mass M is suspended by spring S. The small gap D between M and the core of inductance L changes slightly when the gravitational effect aorund M is altered. This change in inductance can be measured by standard equipment with high accuracy. If such a mechanism were to be used operationally, some means must be pro-vided to compensate for the temperature effect on the mass, etc. Even is a mine unit with such high precision could be produced, the whole system would be extremely sen-sitive to the natural vibrations of the ground, and would have to be protected against such vibrations by means yet to be devised. |

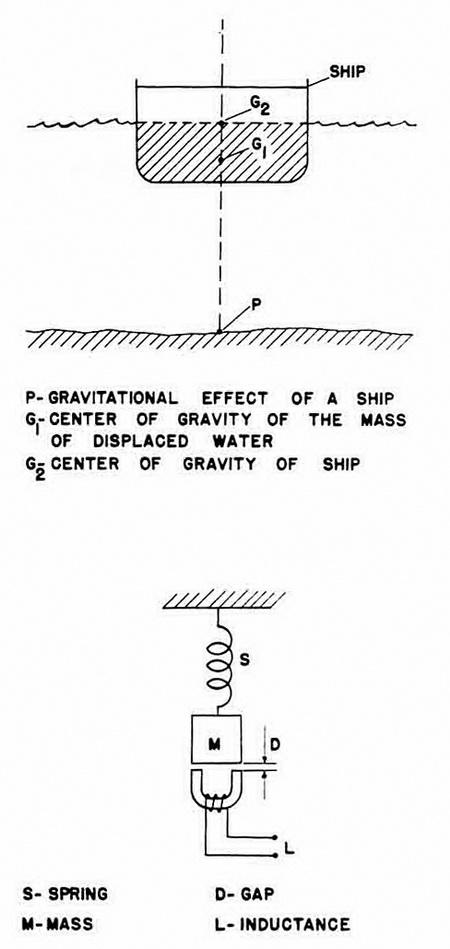

Figure 259 – Schematic Drawing of Gravitation Unit |
|
