GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 7 - PRESSURE AND PRESSURE-COMBINATION UNITS |
DM 1 UNIT |
The DM 1 unit is a combination pressure magnetic unit designed by Hasag, Leipzig, for SVK, for use with the LM and TM mines. Work on it began early in 1942, and it was com-pleted and ready for operational use in the summer of the same year. The first unit of this type was recoveres in Normandy in July 1944, Figure 248. |
This unit utilizies the M 1 with a sensitivity of 5 mg and the D 1 with a delay of 8 se-conds at 15 to 25 mm suction. |
A thermal delay switch (15 to 40 seconds) determines the interval after actuation of M 1, during which actuation of D 1 may fire the mine. |

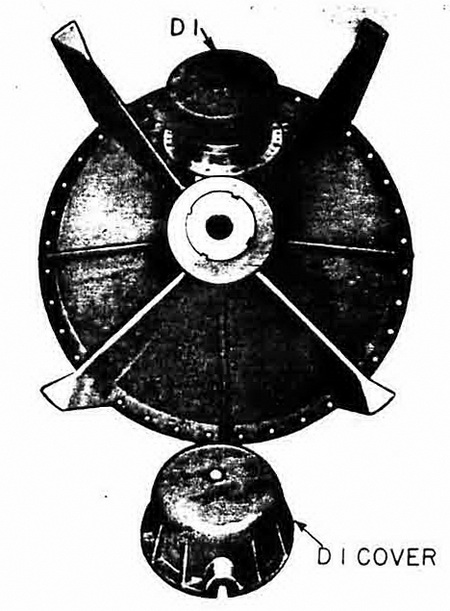

Figure 247 – LMB Tail with D 1 Unit |
|

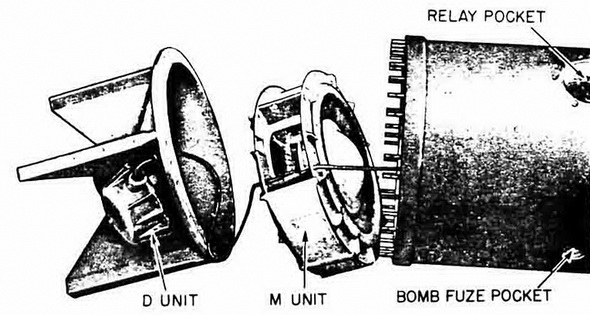

Figure 248 – DM 1 Unit |
|
Arming. When the hydrostatic clock runs off its delay setting, A-G and B-C closes. B then charges C through W3 and the closed contact (4-5) of R1. When C is charged, R2 operates, breaking 4-5 and making 4-3, thereby removing the detonator from the circuit. Eighteen minutes later, E-F closes, the magnetic component goes through A.L.A. and is armed. |
Magnetic-Actuation. Actuation of the magnetic component closes the needle switch and operates the air core relay, thereby closing S5 to contact No. 1. Hold-on current and thermal delay-switch heater current pass through the normally-closed contact of the thermal delay switch. This condition persists until the thermal delay switch opens, breaking the magnetic hold-on and heater current. The magnetic component then re-turns to normal. |
Pressure Actuation. A decrease in hydrostatic pressure closes pressure switch P. This causes B to energize R1, breaking 4-5 and making 4-3. Battery current to C is thereby cut off, causing C to discharge through W3 and R2. When C has discharged suf-ficiently, it no longer holds 4-5 open. The foregoing constitues a single pressure actuat-ion for which nine seconds continuous closure of P is required. |
Combination Actuation. If magneitc actuation occurs first, pressure actuation may be completed at any time within 25 seonds thereafter. At the end of the 25-second pe-riod, the thermal delay switch breaks the magnetic circuit. Pressure actuation within the 25-second interval causes contact 4-5 of R2 to make, firing the detonator through con-tact No. 1 of S5. |
If pressure actuation occurs first, P must be held closed until the magnetic actuation is complete, if the detonator is to fire. Otherwise, opening P de-energizes R1, recharging C and thereby opening 4-5, which takes the detonator out of the firing circuit. |

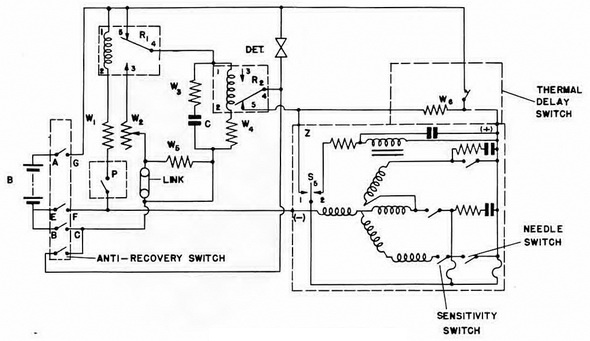

Figure 245 – DM 1 Unit circuit |
|
