GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 7 - PRESSURE AND PRESSURE-COMBINATION UNITS |

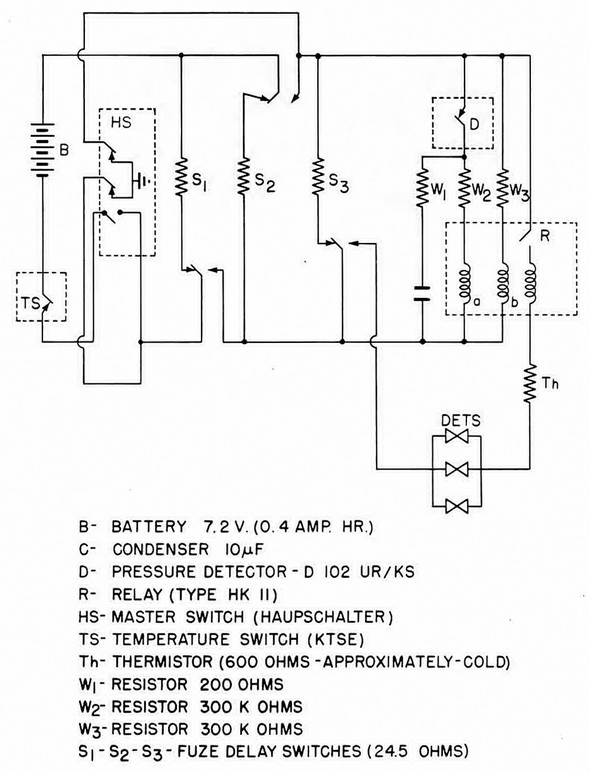

OPERATION OF D 103 UNIT (FIGURE 238) |
Upon impact, the bomb fuze operates the master switch, and if the temperature is within the proper range, the bi-metal temperature switch is closed. The battery energi-zes fuse delay switches S1, S2, and S3 in sequence, which gives an arming delay of about three minutes. Since the pressure switch D is normally closed, the two coils of the galvanometer-type relay R are energized equally, and the relay remains in its equilibrium position. During this period, the condenser C is charged through resistor w1 to the full battery potential. |
When a negative pressure differential is applied to the pressure device, contact D opens, putting the full load of maintaining coil (a) or relay R on the condenser C. If the pressure differential is maintained for three seconds, the condenser discharges suffici-ently for relay R to make contact due to the current flowing constantly in coil (b). Clos-ing of the contact energizes the hold-on coil of the relay, and, after a short delay due to the thermistor (th), the detonator is filled. |
If the pressure differential is not continually maintained for three seconds, the pres-sure switch D closes before the relay has made contact; condenser C is quickly rechar-ged through the relatively low resistor w1, and firing is prevented. |
Anti-countermining protection is provided in three ways: |
1. The pressure detection device is fitted with an anti-detonation valve. |
2. A continuous pressure of three seconds duration is required. |
3. The thermistor requires that the relay contact be closed more than momentarily to allow sufficient current to flow and operate the hold-on coil. |
If a mine fitted with the D 103 unit is raised from under water, the decrease in press-ure may be sufficient to cause normal firing of the mine. |
|
