GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 3 - ACOUSTIC MINE UNITS |
A 1 - UNIT |

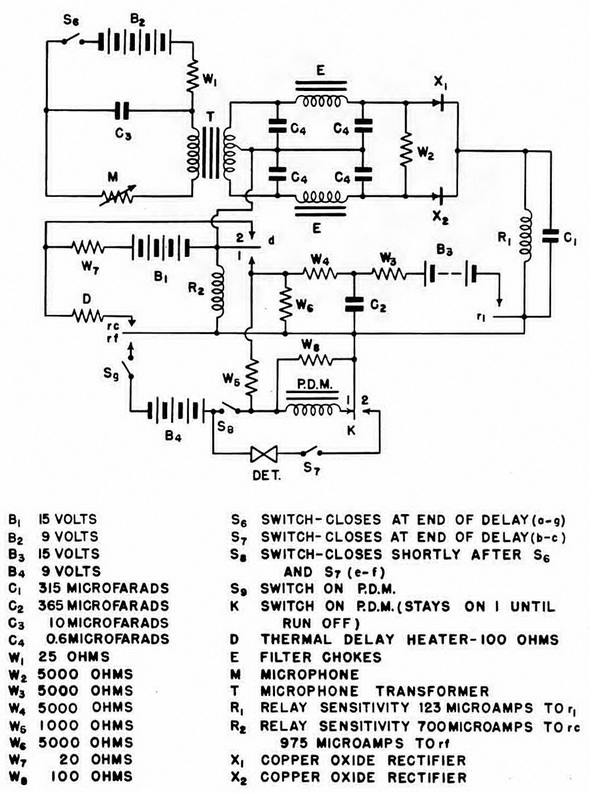

A 1 (Allied - A Mk III) Unit (Figure 165) |
At the end of its preset period, the static clock closes switches S6, S7 and S8. |
Normal Firing. Same as A Mk I and Mk II, excpet that the incorporation of an extra choke condenser filter (E-C4) eliminates signal currents of 700-1000 cps. frequency, thereby making the unit more selective as to the frequencies of sound which will cause firing or anticountermining. |
Normal Anti-countermining. Same as A Mk I and Mk II, except as noted above. |
P.D.M. Action. In addition, a twelve-place P.D.M. may be fitted which operates as follows: |
1. When a firing impulse closes R2 to rf, battery B4 puts hold-on current through R2 by means of W5. The P.D.M. solenoid is also energized by B4 through K1, and the P.D.M. clockwork starts. |
2. When S9 breaks, R2 hold-on current is broken and the P.D.M. solenoid is denergi-zed. The circuit then remains dormant until the P.D.M. interval is run off and S9 reclo-ses.When the final "blind" actuation is run off, K1 breaks and K2 makes, putting the de-tonator in the circuit. |
3. Detailed operation of the P.D.M. is the same as that of the standard P.D.M. S9 corresponds to P-Q, K1 to R-S, and K2 to S-T. |
|
