GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 9 - SPECIAL PURPOSE MINES |
THE HM MINES |
The HMB Mine. The HMB had no magnets and was not intended to adhere to the bottom of the target ship. On the contrary, it was designed to laying beneath a specific target ship or in other chosen areas as a ground influence mine. Its characteristics are as follows: (Specifications are approximate.) |
Description |
Case material |
KSS |
Length of case |
56 in. |
Diameter of case |
45 in. |
Weight of charge |
1750 lb. |
Maximum depths |
80-115 ft., depending on the influence unit used |
Method of firng |
MA 2, MA 3, and DM 1 |

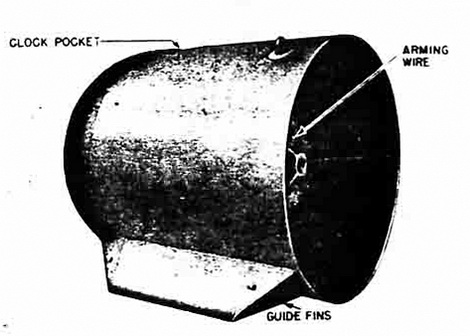

Figure 116 – HMB Mine |
|
