GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 6 - AIRCRAFT MINES - LUFTWAFFE |
THE BM MINE SERIES |
BM 1000 M. The BM 1000 M is the same as the BM 1000 H, except for two minor mo-difications. |
A conduit run from the fuze pocket to the nose, which holds the leads from the elec-tric firing of the "Bugspiegle" releasing squibs. |
The suspension lug is 1-1/8 in. lower. |

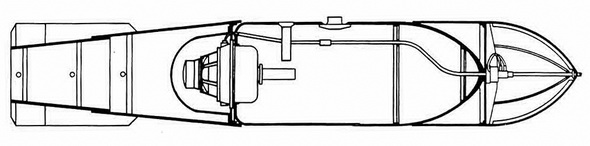

Figure 77b – BM1000 M Mine with JAD 101 and BV 2 |
|
