| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 4 - CONTACT AND MOORED INFLUENCE MINES |
| TABLE OF CONTACT MINES |
|

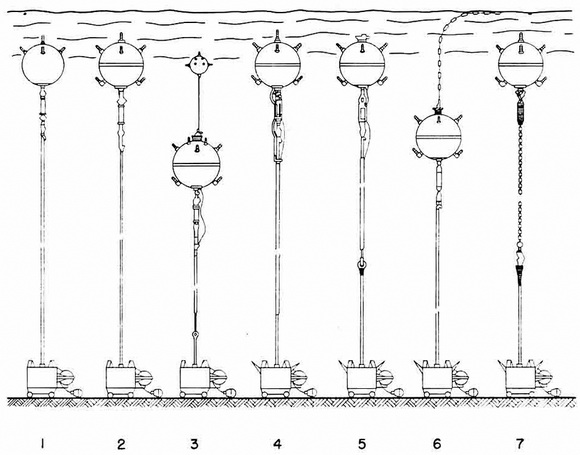

Figure 49a – Operational Mines and Sweep Obstructors |
|
|
|
Key to Figure 49a |
|
1. |
EMD I, II |
|
2. |
EMC I |
|
3. |
EMC II - Upper and lower antenna |
|
4. |
EMC II - Tombac tubing |
|
5. |
EMC II - Lower antenna |
|
6. |
EMC II - Cork-floated upper antenna |
|
7. |
EMC II - Chain mooring |
|

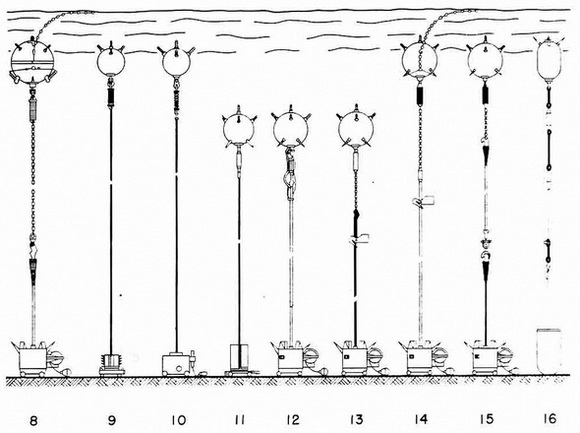

Figure 49b – Operational Mines and Sweep Obstructors |
|
|
|
Key to Figure 49b |
|
8. |
EMC II - Snap line and chain mooring |
|
9. |
FMB |
|
10. |
FMC |
|
11. |
UMA |
|
12. |
UMB - Tombac tubing |
|
13. |
UMB - Chain mooring and mechanical cutter |
|
14. |
UMB - Snag line, chain mooring, and mechanical cutter |
|
15. |
UMB - Chain mooring and two cutters |
|
16. |
BMC |
|

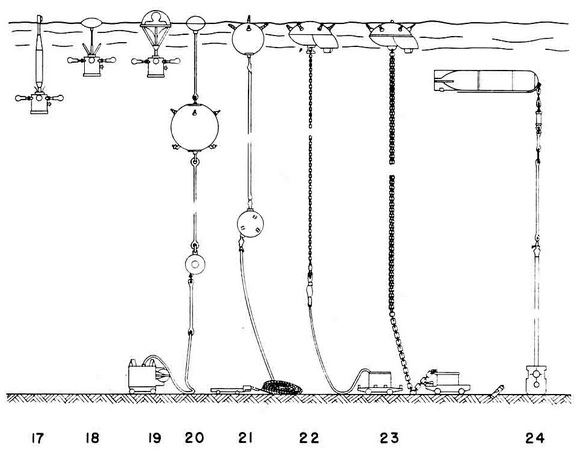

Figure 49c – Operational Mines and Sweep Obstructors |
|
|
|
Key to Figure 49c |
|
17. |
EMS I - Periscope type |
|
18. |
EMS II - Float type |
|
19. |
EMS III - Cupola type |
|
20. |
EMG |
|
21. |
UMA/K |
|
22. |
OMA I - Single chain |
|
23. |
OMA/K - Double chain |
|
24. |
LMF |
|

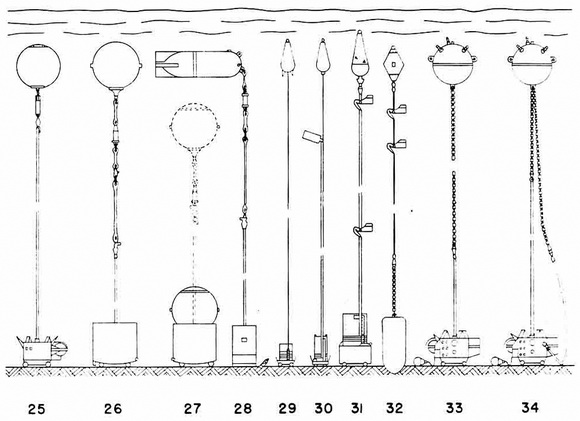

Figure 49d – Operational Mines and Sweep Obstructors |
|
|
|
Key to Figure 49d |
|
25. |
TMA |
|
26. |
SMA |
|
27. |
SMC |
|
28. |
LMF |
|
29. |
Explosive anti-sweep float C |
|
30. |
Explosive anti-sweep float D |
|
31. |
Mechanical anti-sweep float |
|
32. |
BRB |
|
33. |
EMR |
|
34. |
EMR/G |
|
|
