U.S. EXPLOSIVE ORDNANCE
PART 6 - BOMBS AND BOMB FUZES
Chapter 19 - PRACTICE BOMBS
Section 2 - ARMY PRACTICE BOMBS

100-pound M38A2

Over-all length, inches

47.5

Diameter, inches

8.13

Weight, empty, pounds

15.7

Weight, sand-loaded and spotting



charge, pounds

100

This bomb simulates a G.P. bomb of the same size. The spotting charge is assemble in a sleeve at the base of the bomb, within the fin box. Authorized spotting charge are M1A1, M3, and M4.

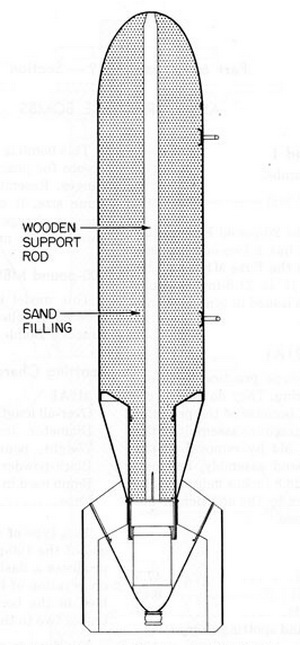

Figure 314. 100-pound Bomb M38A2
