115-pound Chemical M70 |
|
Over-all length, inches |
48.7 |
|
Body length, inches |
40.4 |
|
Body diameter, inches |
8.1 |
|
Wall thickness, inch |
0.224 |
|
Tail length, inches |
12.9 |
|
Tail width, inches |
10.9 |
|
Tail weight, pounds |
3.5 |
|
Filling |
Mustard (H) |
|
Weight of filling, pounds |
57.1 |
|
Total weight, pounds |
122.5 |
|
Charge/weight ratio |
46.6% |
|
Fuzing |
M159, AN-M110A1 |
|
General: The bomb is made from a seamless steel tubing, with an ogival nose threa-ded to receive the nose fuze. A burster-well tube runs the entire length of the body, fit-ting into a positioning cup at the rear. The tail assembly consists of four fins welded to a sleeve, which is secured by a locking nut threading into the tail closing block. The fins are supported by box-types struts. |
|
Suspension: The bomb is carried horizonatlly by dual lugs seven inches on either side of the center of gravity, or a single lug 180° removed at the center of gravity. |
|
A cluster of four M70's is formed by using the Cluster Adapter M22. |
|
Remarks: On impact, the fuze functions instantaneously, setting off the burster charge, which explodes the bomb and scatters the main filling. |
|
The M70 can also be filled with white phosphorus, or with IM or NP incendiary mixture. |
|

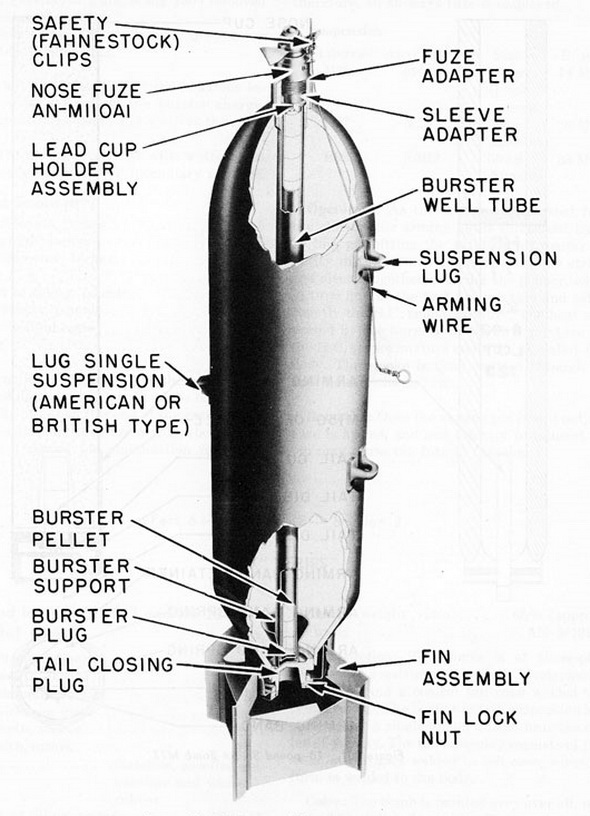

Figure 300. 115-pound Chemical Bomb M70 |
|
|
 |
