M3

Body length, inches

5.4

Body height, inches

3.5

Body width, inches

3.5

Weight, pounds

9.6

Flaked TNT explosive, pound

0.9

Material

Cast iron

Lethal range, feet

30

Color

Olive drab

Components: The mine consists of a rectangular cast-iron body containing high ex-plosive, with fuze wells on two opposite sides and one end. The filling hole on the other end is closed by a disc. The mine is activated by the Fuze M7A1.

Remarks: On the surface, the lethal range of the mine is 30 feet. If the mine is buried only deep enough to be camouflaged, the effective lethal range is reduced to approxima-tely 10 feet.

Exposure to moisture will not affect the operation of the mine; however, it is not wa-terproof and should not be planted where it will be immersed in water for more than a few days.

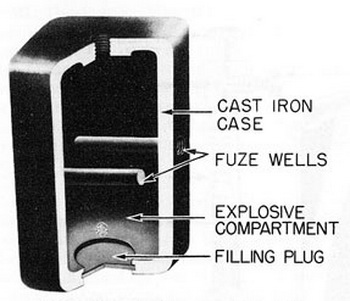

Figure 243. Anti-Personnel Mine M3
