| U.S. EXPLOSIVE ORDNANCE |
| PART 3 - PYROTECHNICS |
| Chapter 10 - SHIPBOARD PYROTECHNICS |
| Section 1 - SURFACE VESSEL ITEMS |
|
Rocket, White, Marine Type, Mk 1 Mod 0 |
|
Length, inches |
12.0 |
|
Diameter, inches |
1.5 |
|
Weight, pounds |
2 |
|
Burning time, seconds |
5 |
|
Use: This is a merchant marine rocket issued by the Navy. |
|
Description: This rocket signal consists of the rocket body, star pellets, propelling charge, clay heading, and closing cap. |
|
Operation: The rocket is fired by the Pyrotechnic Pistol AN-M8 and reaches a height of 250 feet. At the height of its trajactory, the rocket bursts. The falling particles burn for five seconds. |
|
Remarks: This signal will be replaced by the Rocket Pistol Signal Mk 3 Mod 0 (Sho-wer). |
|

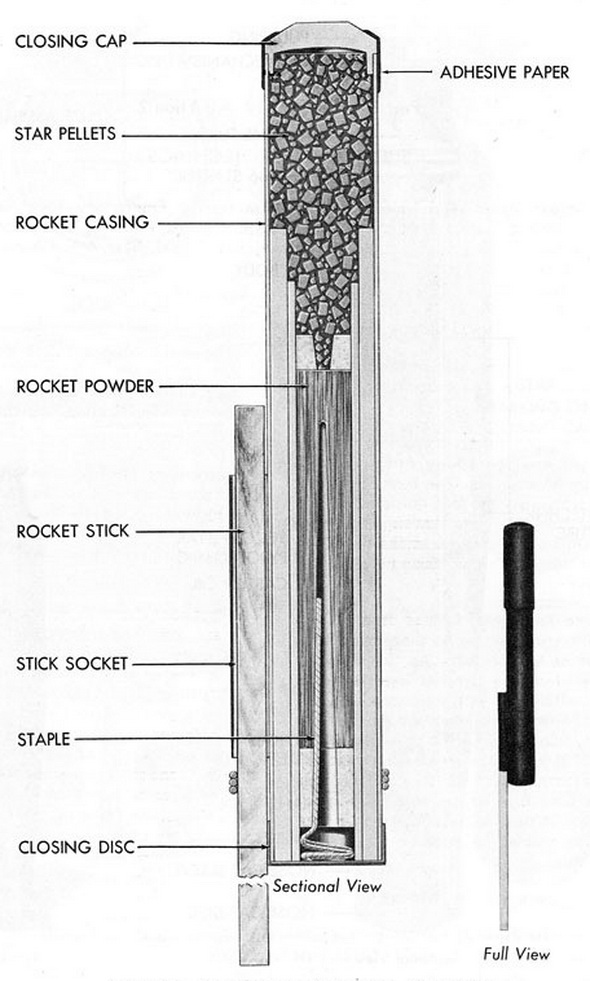

Figure 215. Rocket, White, Marine Type, Mk 1 Mod 0 |
|
|
 |
