| U.S. EXPLOSIVE ORDNANCE |
| PART 2 - ROCKET AND ROCKET FUZES |
| Chapter 5 - ROCKET BODIES |
| Section 3 - SOME ARMY DEVELOPMENTAL TYPES |
|
H.E. S.S. 21-cm T36 and Practice T45 |
|
Over-all length, inches |
48.86 |
|
Weight, pounds |
91.75 |
|
Fuzing |
M51 (M81) |
|
General: This round is a copy of the German rocket of the same type. At present, performance tests are being conducted by the Army Ordnance Department. It is conven-tional structure, with the artillery-type fuze. |
|

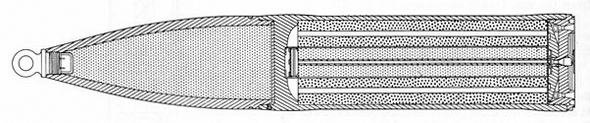

Figure 123. 21-cm H.E. S.S. Rocket T36 |
|
|
