U.S. EXPLOSIVE ORDNANCE
PART 2 - ROCKET AND ROCKET FUZES
Chapter 5 - ROCKET BODIES
Section 3 - SOME ARMY DEVELOPMENTAL TYPES

4.5-inch H.E. S.S. T160 and Practice T161

Over-all length



Without fuze, inches

 30.07

TNT charge, pounds

 6.0

Fuzing

M81 or M402 (V.T.)

General: Because of its more efficient propellant, this round is expected to be a more powerful, longer-range rocket. Except for the propellant, it is of conventional Army de-sign.

Propellant: Seven cylindrical powder sticks, 13.5 inches long and 1.35 inches in dia-meter, furnish the power. The grid type of support is used instead of the conventional trap, and the igniter is housed against the motor wall, instead of being placed in the center. Safe temperature limits for this round are from -20° F. to +120° F.

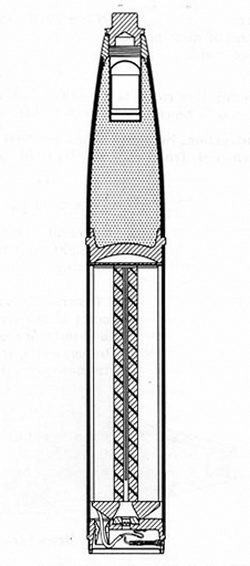

Figure 122. 4.5-inch H.E. S.S. Rocket T160
