| U.S. EXPLOSIVE ORDNANCE |
| PART 2 - ROCKET AND ROCKET FUZES |
| Chapter 5 - ROCKET BODIES |
| Section 1 - INTRODUCTION |
|
PROPELLANT GRAINS |
|
Mark |
Mod |
Shape |
|
Cruciform |
Cylindrical |
|
|
|
|
|
|
U.S. Navy |
Outside |
Outside |
Inside |
Body |
Weight |
Length |
Motors |
|||
|
1 |
--- |
Cylindrical |
--- |
--- |
1.97 |
0.59 |
1.70 |
1.429 |
11.60 |
2.25" R.M. Mks |
|
2 |
--- | " | --- | --- | 1.97 | 0.43 | 1.70 |
1.551 |
11.60 |
2.25" R.M. Mk 3 |
|
3 |
--- | " | --- | --- | 1.97 | 0.51 | 1.72 |
1.503 |
11.60 |
2.25" R.M. Mk 3 |
|
3 |
1 |
" |
--- |
--- |
1.97 |
0.51 |
1.70 |
1.503 |
11.60 |
2.25" R.M. Mk 3 |
|
4 |
--- |
" |
--- |
--- |
1.10 |
0.50 |
0.99 |
0.207 |
5.80 |
|
|
4 |
1 | " | --- | --- | 1.10 | 0.53 | 0.99 |
0.207 |
6.10 |
|
|
5 |
--- | " | --- | --- | 1.10 | 0.50 | 0.99 |
0.142 |
4.10 |
|
|
5 |
1 |
" |
--- |
--- |
1.10 |
0.53 |
0.99 |
0.142 |
4.10 |
|
|
6 |
--- |
" |
--- |
--- |
2.95 |
1.41 |
2.49 |
1.800 |
8.06 |
3.25" R.M. Mk 1 |
|
6 |
1 | " | --- | --- | 2.96 | 1.42 | 2.51 |
1.800 |
8.06 |
3.25" R.M. Mk 1 |
|
7 |
--- | " | --- | --- | 2.96 | 1.38 | 2.49 |
2.800 |
13.00 |
3.25" R.M. Mk 2 |
|
7 |
1 | " | --- | --- | 2.96 | 1.37 | 2.51 |
2.800 |
13.00 |
3.25" R.M. Mk 2 |
|
8 |
--- | " | --- | --- | 2.96 | 1.38 | 2.49 |
4.140 |
19.30 |
3.25" R.M. Mk 3 |
|
8 |
1 |
" |
--- |
--- |
2.96 |
1.37 |
2.51 |
4.140 |
19.55 |
3.25" R.M. Mk 3 |
|
9 |
--- |
" |
--- |
--- |
2.96 |
1.42 |
2.51 |
1.690 |
8.15 |
3.25" R.M. Mk 4 |
|
10 |
--- | " | --- | --- | 1.97 | 1.63 | 1.70 |
1.397 |
11.50 |
2.25" R.M. Mk 5 |
|
11 |
--- | " | --- | --- | 2.96 | 1.05 | 2.55 |
5.250 |
20.25 |
3.25" R.M. Mk 5 |
|
11 |
1 |
" |
--- |
--- |
2.96 |
1.05 |
2.55 |
5.250 |
20.25 |
3.25" R.M. Mk 5 |
|
12 |
--- |
" |
|
|
1.10 |
0.53 |
0.99 |
0.298 |
8.30 |
1.25" R.M. Mk 4 and |
|
12 |
1 | " | --- | --- | 1.10 | 0.53 | 0.99 |
0.298 |
8.80 |
1.25" R.M. Mk 4 and |
|
13 |
--- |
Cruciform |
0.990 |
2.93 |
--- |
--- |
--- |
8.830 |
34.00 |
3.25" Mk 7 (Aircraft) |
|
14 |
--- |
Cylindrical |
--- |
--- |
2.96 |
1.03 |
2.55 |
3.77 |
14.60 |
Rocket Mk 10 (Target) |
|
15 |
--- | " | --- | --- | 2.96 | 1.03 | 2.55 |
2.60 |
10.10 |
Rocket Mk 11 |
|
16 |
--- | " | --- | --- | 1.97 | 0.26 | 1.70 |
1.75 |
13.287 |
2.25" Mk 10 |
|
16 |
1 |
" |
--- |
--- |
1.97 |
0.26 |
1.66 |
1.75 |
14.037 |
2.25" Mk 10, Mk 10-1, |
|
17 |
--- |
" |
--- |
--- |
1.97 |
0.26 |
1.66 |
1.12 |
9.25 |
2.25" Mk 12, Mk 13 |
|
18 |
0 | Cruciform | 1.540 | 4.53 | --- | --- | --- | 24.83 |
39.75 |
5.0" Mk 1, Mk 1 |
|
19 |
0 |
" |
1.540 |
4.53 |
--- |
--- |
--- |
38.00 |
59.75 |
11.75" Mk 1.4 grains |
|
20 |
0 |
" |
0.990 |
2.93 |
--- |
--- |
--- |
8.83 |
34.00 |
3.25" Mk 7 (Aircraft) |
|
21 |
0 | " | 1.540 | 4.53 | --- | --- | --- |
10.38 |
16.75 |
5.0" Mk 3 (H.V.S.R.) |
|
22 |
0 | " | 1.540 | 4.53 | --- | --- | --- |
5.83 |
9.35 |
5.0" Mk 4 (H.C.S.R.) |
|
23 |
0 | " | 0.990 | 2.93 | --- | --- | --- |
2.50 |
9.95 |
3.50" S.S. Mk 13 |
|
24 |
0 | " |
|
|
5.0" S.S. Mk 5 |
|||||
|
25 |
0 |
" |
|
|
|
|
|
|
|
5.0" S.S. Mk 6 |
|

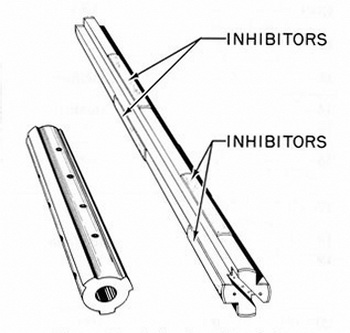

Figure 114. Rocket Propellant Grains |
|
|
 |
