U.S. EXPLOSIVE ORDNANCE |
PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
Chapter 2 - Cartridge Cases and Bag Charges |
Introduction |
Marking of case and bag charges. |

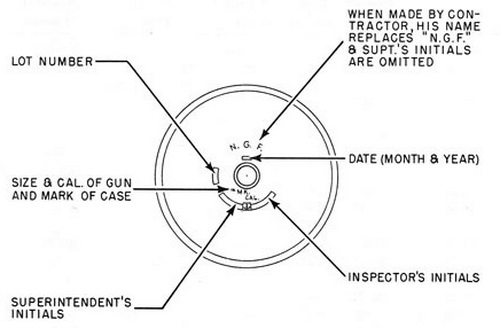

Case markings: In addition to the information stamped on the head as shown in figu-re 79 the following marks are painted on the case: |
Flashless powder: In cases loaded with flashless powder, a ¾-inch "F" should be painted in yellow somewhere on the head end. Also, the word "FLASHLESS" is painted on the side of the case. |
Fixed and semi-fixed ammunition: Both fixed and semi-fixed ammunition cases have the index number painted in ¾-inch high letters on the head end of the case. In addition, semi-fixed charges also have their ammunition lot numbers painzed on in similar fashion. |
Bag charges: These markings are lettered in 3/8-inch black characters on the side opposite to the lacings, with the bottom of the letters toward the ignition end of the bag: |
Ammunition lot number |
Caliber and length of gun in calibers - type of charge (full, reduced, etc.) |
Index number of powder |
Weight of powder charge |
Number of sections per charge |
Initial velovity and weight of projectile with which charge can be used*. |
The word "FLASHLESS" in ¾" high yellow letters if the charge is either flashless-type powder or powder with flashless pellets added. |
|
