| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 10 - 16-INCH PROJECTILES |
| 16-inch Target Mk 9 Mods 1 and 2, and Mk 10 Mod 0 |
|
Guns used in |
16"/45 Mk 6 Mod 1 16"/50 Mk 7 Mod 0 |
|
Over-all length, inches |
72 |
|
Diameter of base, inches |
15.977 |
|
Distance base to band, inches |
2.5 |
|
Diameter at bourrelet, inches |
15.977 |
|
Weight of loaded projectile, pounds |
2,700 |
|
Primer |
Mk 15 Mod 1 |
|
Tracer |
Mk 5 |
|
Mods 1 and 2 of the 16-inch Target Projectile Mk 9 are physically the same. Different Mods distinguish products of different contractors. The Mk 9's have no spotting dye. |
|
Mk 10 is exactly like the Mk 9, except that is contains a spotting load. |
|
These target shells match the 16-inch A.P. Projectile Mk 8 in ballistics traits. |
|

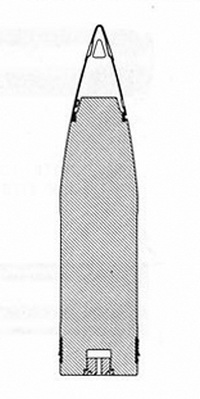

Figure 74. 16-inch Target Mk 9 and Mk 10 |
|
|
 |
