U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 10 - 16-INCH PROJECTILES
16-inch H.C. Mk 13 Mods 0 - 6 and Mk 14

Guns used in

16"/45
16"/50

Over-all length, inches



With nose fuze

64.0

Without nose fuze

60.18

Diameter of base, inches

15.977

Distance base to band, inches

4.03

Width of band, inches

5.32

Diameter at bourrelet, inches

15.977

Filling

Explosive D

Weight of filling, pounds

153.6

Weight of loaded projectile, pounds

1,900

Charge/weight ratio

8.08%

Primer

Mk 15 Mod 1

Tracer

Mk 5

Fuzes



Base

Mk 28 "green stripe"



Mk 39 Mods 0 and 1



Mk 48 Mods 0 and 1

Nose

Mk 29 Mods 1, 2, and 3 (P.D.F.)



Mk 42 Mod 0 (M.T.F.)



Mk 62 Mod 0 (M.T.F.)



Steel Nose Plug

Auxiliary Detonating Fuze

Mk 17 Mod 8 "green stripe"



Mk 35 Mod 0



Mk 55 Mod 0



Booster Mk 5, or a special 0.53 pound pres-sed TNT booster, will be used under the au-xiliary detonating fuze.

This projectile is normally issued with an A.P. nose plug.

The 16-inch H.C. Projectile Mk 13 Mod 1 was originally issued as the 16" Ex-1.

The Base Fuze Mk 39 replaces the original special "green stripe" Base Fuze Mk 28; the Auxiliary Detonating Fuze Mk 35 replaces the original special "green stripe" Mk 17 Mod 8. These fuzes are now being replaced by the Base Fuze Mk 48 and the Auxiliary Detonat-ing Fuze Mk 55.

The Mk 14 is simply a different designation to indicate a different maufacturer.

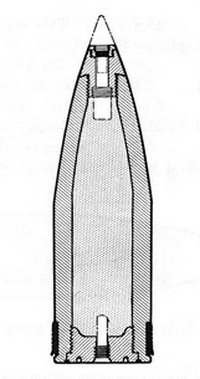

Figure 73. 16-inch H.C. Mk 13 Mods 0 - 6 and Mk 14
