| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 10 - 16-INCH PROJECTILES |
| 16-inch A.P. Mk 5 Mods 1 - 6 |
|
Guns used in |
16"/45 |
|
Over-all length, inches |
|
|
With cap & windshield |
64.0 |
|
Without cap & windshield |
43.387 |
|
Diameter of base, inches |
15.977 |
|
Distance base to band, inches |
4.03 |
|
Width of band, inches |
5.32 |
|
Diameter at bourrelet, inches |
15.977 |
|
Filling |
Explosive D |
|
Weight of filling, pounds |
34.0 |
|
Weight of loaded projectile, pounds |
2,240 |
|
Charge/weight ratio |
1.5% |
|
Primer |
Mk 15 Mod 1 |
|
Tracer |
Mk 5 |
|
Fuzes |
Base - Mk 21 Mods 0 and 1 |
|
This projectile was originally issued without windshield, but has since been modified. |
|
The 16-inch A.P. Projectile Mk 5 Mod 6 is a modified Mk 12 (designed for Army use) with a special base-plug adapter. |
|

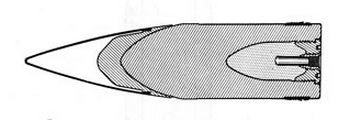

Figure 71. 16-inch A.P. Mk 5 Mods 1 - 5 |
|
|
 |
