| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 7 - 8-INCH PROJECTILES |
| 8-inch H.C. Mk 24 Mods 1 - 5 |
|
Guns used in |
8"/55 |
|
Over-all length, inches |
|
|
With cap and windshield |
34.56 |
|
Without cap and windshield |
31.08 |
|
Diameter of base, inches |
7.977 |
|
Distance base to band, inches |
2.56 |
|
Width of band, inches |
3.30 |
|
Diameter at bourrelet, inches |
7.977 |
|
Filling |
Explosive D |
|
Weight of filling, pounds |
21.34 |
|
Weight of loaded projectile, pounds |
260 |
|
Charge/weight ratio |
8.21% |
|
Primer |
Mk 15 Mod 1 |
|
Tracer |
Mk 5 |
|
Fuzes |
|
|
Base |
Mk 28 and all Mods |
|
|
Mk 39 Mods 0 and 1 |
| Mk 48 Mods 0 and 1 | |
|
Nose |
Mk 18 Mods 2, 3, and 4 (M.T.F.) |
| Mk 50 Mods 0 - 3 (M.T.F.) | |
| Mk 29 Mods 1, 2, and 3 (P.D.F.) | |
| Mk 63 Mods 0 (M.T.F.) | |
|
Auxiliary Detonating Fuze |
Mk 17 and all Mods |
| Mk 46 Mod 0 | |
| Mk 35 Mod 0 | |
| Mk 54 Mod 0 and 1 | |
| Mk 55 Mod 0 |
|
Base Fuze Mk 48 (and Mods) is the current and prefered assembly for this projectile; however, the Base Fuzes Mk 39 or Mk 28 may be used. |
|
The Auxiliary Detonating Fuze Mk 55 is the prefered assembly in this projectile. |
|

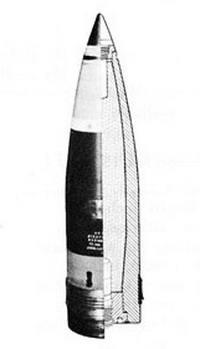

Figure 58. 8-inch H.C. Mk 24 Mods 1 - 5 |
|
|
|
|
