8-inch Special Common Mk 17 Mods 1 - 4

Guns used in

8"/55

Over-all length, inches

36.0

Diameter of base, inches

7.977

Distance base to band, inches

2.56

Width of band, inches

3.30

Diameter at bourrelet, inches

7.977

Filling

Explosive D

Weight of filling, pounds

10.38

Weight of loaded projectile, pounds

260

Charge/weight ratio

3.99%

Primer

Mk 15 Mod 1

Tracer

Mk 5

Fuzes



Base

Mk 21 Mod 0 and 1



Mk 23 Mod 0

The Base Fuze Mk 21 is preferable for this projectile. Several has also been fuzed with the Base Fuze Mk 28 on account of a lack of sufficient H.C. projectiles.

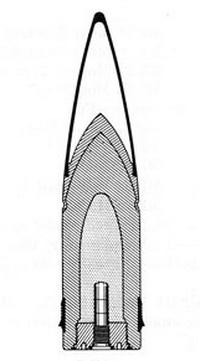

Figure 56. 8-inch Special Common Mk 17 Mods 1 - 4
