| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 5 - 6-INCH PROJECTILES |
| 6-inch Common Mk 24 Mods 1 - 5 |
|
Guns used in |
6"/53 |
|
Over-all length, inches |
27.0 |
|
Diameter of base, inches |
5.985 |
|
Distance base to band, inches |
1.0 |
|
Width of band, inches |
2.50 |
|
Diameter at bourrelet, inches |
5.985 |
|
Filling |
Explosive D |
|
Weight of filling, pounds |
5.73 |
|
Weight of loaded projectile, pounds |
105 |
|
Charge/weight ratio |
5.46% |
|
Primer |
Mk 15 Mod 1 |
|
Tracer |
Mk 5 |
|
Fuzes |
Base - Mk 19 Mods 0 and 1 |
|
This projectile is reserded for submarines. |
|
This projectile may be fuzed with Base Fuzes Mk 3 and Mods. It is to be reloaded and refuzed with the Base Fuze Mk 19. |
|
This projectile is also issued B.L. & T. with adapter and Tracer Mk 5 Mod 1 for target practice. |
|

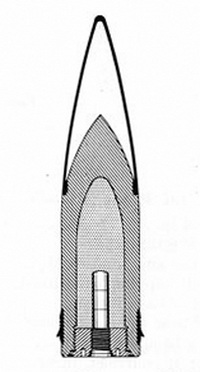

Figure 46. 6-inch Common Mk 24 Mod 1 |
|
|
|
|
