5-inch Window Projectile

Guns used in

5"/38

Over-all length, inches



With nose fuze

20.0

Without nose fuze

15.8

Diameter of base, inches

4.968

Distance base to band, inches

2.43

Width of band, inches

2.25

Diameter at bourrelet, inches

4.985

Filling

Expelling charge is black powder, flare, magnesium.

Weight of filling

Expelling charge is 2.5 ounces

Weight of loaded projectile, pounds

Load Mk 1 Mod 1 - 53,9 (approx.)



Load Mk 2 Mod 0 - 54.6 (approx.)



Load Mk 4 Mod 0 - 53.0 (approx.)

Cartidge Case

Mk 5

Primer

Mk 13 and all Mods

Fuzes



Nose

Mk 63 Mod 0
  Mk 18 Mods 2, 3, and 4
  Mk 50 and all Mods

Projectile Body


  5-inch III. Mk 30 Mods 5, 7, and 8
  5-inch III. Mk 44 Mod 1

Window Load Mk 1 Mod 1: Consists of about 13,800 aluminum foil strips, each 8 in-ches long, 3/16 inch wide, and 0.00025 inch thick, backed on either side by 12 pounds of tissue paper, solid glued. The strips are stacked within four-section cylindrical wood form, which is encases in a split steel sleeve, the whole inserted into the projectile ca-vity.

Window Load Mk2 Mod 0: Consists of 19 rolls of aluminum foil stacked within a split steel sleeve. Each roll contains continous foil 600 feet long, ½ inch wide, and 0.0009 inch thick. One end of the foil is attached to a cardboard disc by a rayon leader 15 feet long, insuring streaming out of the foil roll. The foil rolls, with their cardboard discs, are each encased in a split retainer ring, forming a load unit. The units are separated by alu-minum discs when loaded in the split sleeve.

Window Load Mk 4 Mod 0: Consists of two stacks of 13,800 aluminum foil strips, each stack separated by an aluminum disc. Each strip is 5.1 inches long by 3/16 in wide. The strips are stacked within two four-section cylindrical magnesium forms, which are encased in a split steel sleeve.

Operation: The explosion of the black powder ejection charge, initiated by the fuze, exerts a pressue against the baffle plate and forces the split steel sleeve, window load, and base plug out of the base end of the projectile.

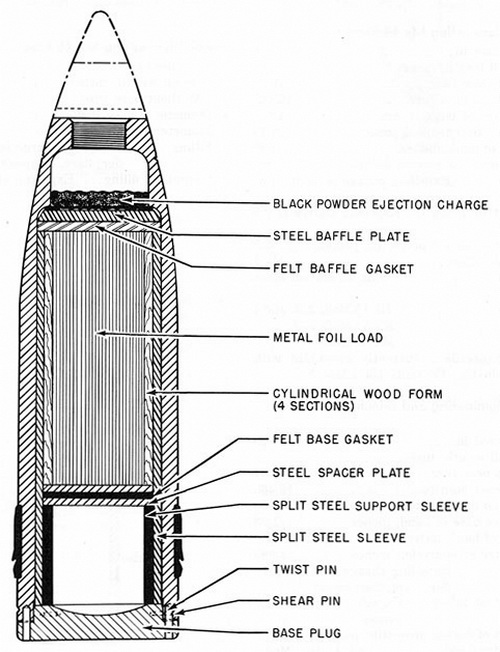

Figure 39. 5-inch Window Projectile – Window Load Mk 1 Mod 1

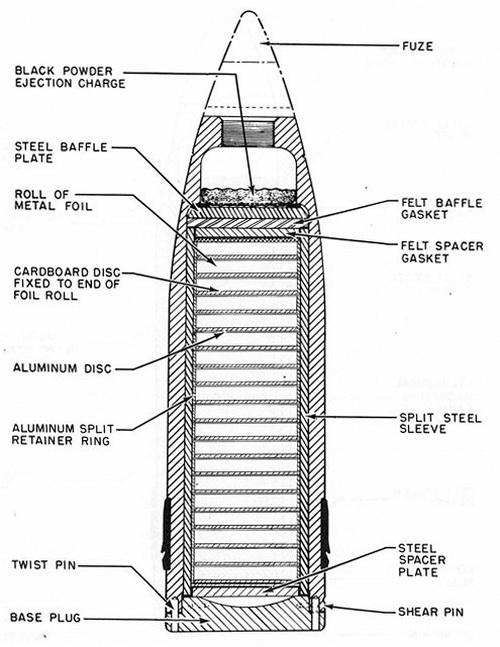

Figure 40. 5-inch Window Load Mk 2 Mod 0

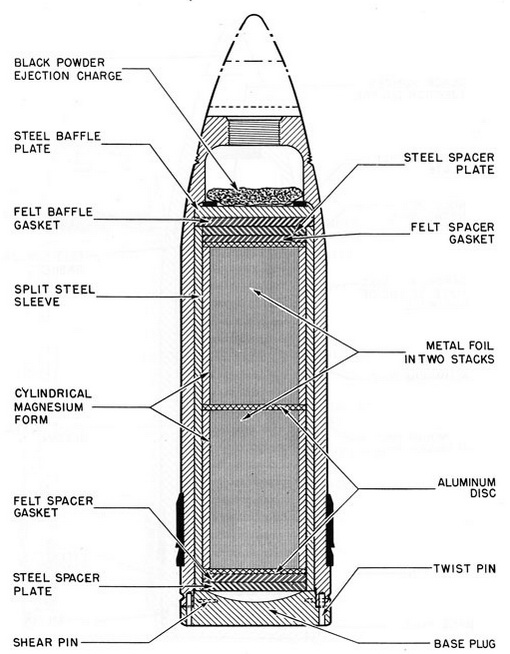

Figure 41. Window Load Mk 4 Mod 0
