| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 4 - 5-INCH PROJECTILES |
| 5-inch A.A. Common Mk 35 Mods 1 - 12 |
|
Guns used in |
5"/38 (case) 5"/51 (bag) |
|
Over-all length, inches |
|
|
With nose fuze |
20.70 |
|
Without nose fuze |
17.225 |
|
Diameter of base, inches |
4.973 |
|
Distance base to band, inches |
2.43 |
|
Width of band, inches |
2.25 |
|
Diameter at bourrelet, inches |
4.985 |
|
Filling |
Exp. D, Comp. A |
|
Weight of filling, pounds |
7.25 |
|
Weight of loaded projectile, pounds |
55.18 |
|
Charge/weight ratio |
13.1% |
|
Cartidge Case |
Mk 5 |
|
Primer |
Mk 13 and all Mods |
|
Tracer |
Mk 9 |
|
Base |
Mk 28 and all Mods |
|
Nose |
Mk 18 Mods 2, 3, and 4 (M.T.F.) |
|
|
Mk 50 and all Mods (M.T.F.) |
|
|
Mk 60 Mod 0 (M.T.F.) (see below) |
|
|
Mk 29 Mods 2 and 3 (P.D.F.) |
|
|
Mk 30 and all Mods (V.T.F.) |
|
|
Mk 32 and all Mods (V.T.F.) |
|
|
Mk 40 and all Mods (V.T.F.) |
|
|
Mk 53 and all Mods (V.T.F.) |
|
|
Mk 63 Mod 0 (M.T.F.) |
|
Auxiliary Detonating Fuze |
Mk 17 and all Mods |
|
|
Mk 44 Mods 0 and 1 |
|
|
Mk 46 Mod 0 |
|
|
Mk 54 Mods 0 and 1 |
|
The Nose Fuze Mk 40 is replacing the Mk 32 when used in the 5"/38 gun. With the 5"/51 bag gun, however, Nose Fuze Mk 32 Mod 40, rather than the Nose Fuze Mk 40, is employed. When these fuzes are used, the projectile adapter is removed, a gas-checked base fuze plug, with no tracer, is fitted into the base, and the Auxiliary Detonating Fuze Mk 54 is employed. |
|
When the V.T. Fuze Mk 53 is used, the base is fitted with a gas-checked base-fuze plug, with no tracer, the projectile adapter is removed, and the Auxiliary Detonator Fuze Mk 44 is employed. |
|
The Auxiliary Detonating Fuze Mk 54 is replacing the Fuzes Mk 17 and Mk 46 in all as-semblies. |
|
With the 1200 f/s I.V. reduced charge for the 5"/38 gun, Nose Fuzes Mk 61 and Mk 29 Mods 2 and 3 with the Auxiliary Detonating Fuze Mk 54 will be employed. |
|
All Mods of this projectile, except Mod 6, may be issued B.L. & P. or B.L. & T. with the Tracer Mk 9 and adapter for target practice. |
|
When these projectiles are used in the 5"/51 bag gun, the Primer Mk 15 Mod 1 is used. |
|

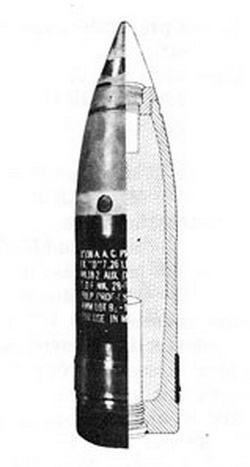

Figure 36. 5-inch A.A. Common Mk 35 Mods 1 - 12 |
|
|
 |
