| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 2 - 3-INCH PROJECTILES |
| 3-inch Illuminating Mk 28 Mod 1 |
|
Guns used in |
3"/23 |
|
Overall length, inches |
|
|
With nose fuze |
7 |
|
Without nose fuze |
9.35 |
|
Diameter of base, inches |
2.965 |
|
Distance base to band, inches |
1.8 |
|
Width of band, inches |
0.70 |
|
Diameter at bourrelet, inches |
2.98 |
|
Filling |
Expelling Charge is black powder; flare is magenisum, Illuminating Contents Mk 3 |
|
Weight of filling |
Expelling charge is 3/8 ounce |
|
Weight of loaded projectile, pounds |
13.00 |
|
Cartidge Case |
Mk 2 |
|
Primer |
Mk 10 Mod 9 |
|
Fuzes |
|
|
Nose |
Mk 22 and Mods 1 through 5 (M.T.F.) |
| Mk 51 and all Mods (M.T.F.) |
|

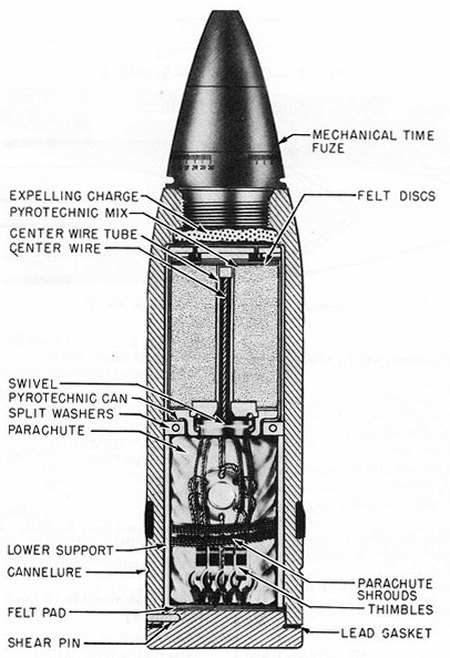

Figure 23. 3-inch Illuminating Mk 28 Mod 1 |
|
|
 |
