U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 2 - 3-INCH PROJECTILES
3-inch A.A. Mk 31 Mod 1

Guns used in

3"/50

Overall length, inches



With nose fuze

12.22

Without nose fuze

8.50

Diameter of base, inches

2.98

Distance base to band, inches

1.35

Width of band, inches

1.00

Diameter at bourrelet, inches

2.985

Filling

Cast TNT, Comp. A

Weight of filling, pounds

0.54

Weight of loaded projectile, pounds

12.90

Charge/weight ratio

4.1%

Cartidge Case

Mk 7 Mod 9

Primer

Mk 14, Mk 14 Mod 1

Fuzes



Nose

Mk 45 Mod 12 (V.T.F.)
  Mk 58 and all Mods (V.T.F.

Auxiliary Detonating Fuze

Mk 44 Mods 0 and 1

This projectile is specially cavitized to receiver V.T. fuzes and their auxiliary detonat-ing fuzes. No other fuzes may be assemblied. Since V.T. fuzing is employed, no tracer is assembled; instead, the base is solid, and a special sheet-steel base cover plate is wel-ded on, 0.031 inch thick and 2.50 inches in diameter.

This projectile replaces the original Mk 31 Mod 0, which has been recalled from service use. The Mod 0 was cavitized to receive the V.T. Fuse Mk 45 Mod 11, which differed from the Mod 12 by having a longer stem and has been declared unserviceable.

The V.T. Fuze Mk 58 is currently replacing the Mk 45 Mod 12 in all assemblies.

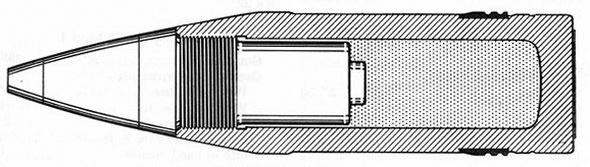

Figure 22. 3-inch A.A. Mk 31 Mod 1
