GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section P - FLAMETHROWERS AND ACCESSORIES |
I–P–17 |
TRAILER, RECHARGING, m.Fm.W. |
Flammenwerfer Füllungwagen |
Fm.W. Füllung |
PURPOSE: |
This trailer provides supplies and spare parts for the Medium-Weight Flamethrower, item I–P–12. |
MARKINGS: |
There are no markings of identification value. |
DESCRIPTION: |
This trailer is mounted on two pneumatic tired-wheels and is drawn by two men; it carries fuel oil, nitrogen at 150 atmospheres pressure, hydrogen at 20 atmospheres, and spare parts for the Medium-Weight Flamethrower. Clamps are provided on the trailer for holding the flamethrower fuel cylinders in the recharging position. The fully equipped trai-ler weighs 682 pounds. The contents are as follows: |
10... | 10 liter fuel cans | |
1... | 10 liter nitrogen cylinder (painted green) | |
10... | 1 liter hydrogen cylinders (painted red) | |
|
1... |
case of spare parts |

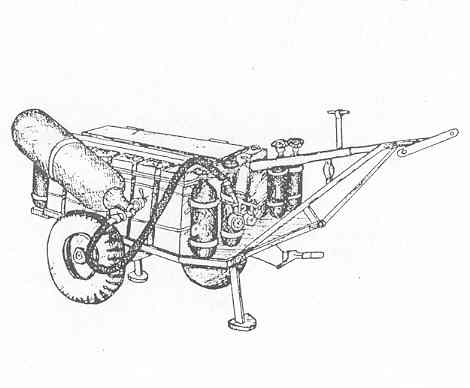

I–P–17 |
Trailer, Recharging, m.Fm.W. |
Flammenwerfer Füllungwagen |
