GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section F - MORTAR SMOKE AMMUNITION |
I–F–6 |
20 cm MORTAR SMOKE SHELL, TYPE 40 |
CALIBER: | 20 cm |
GERMAN DESIGNATION: | Wgr. 40 Nb |
OVERALL COLOR: | Field-gray |
MARKINGS: | Fuze | Wgr.Z. 38 (Stamped) |
Body | Nb (Stencilled in white) |
TAIL FINS: | 6 |
CHEMICAL FILLING: | 15 pounds of oleum-pumice |
LENGHT OF PROJECTILE: | (fuze included) 31.3 inches |
NOTES: |
This shell has a bulb-shaped smoke head, 10.6 inches in diameter and 13 in-ches long. The shell is fired from a light spigot mortar with a maxium range of 500 yards. |
I–F |

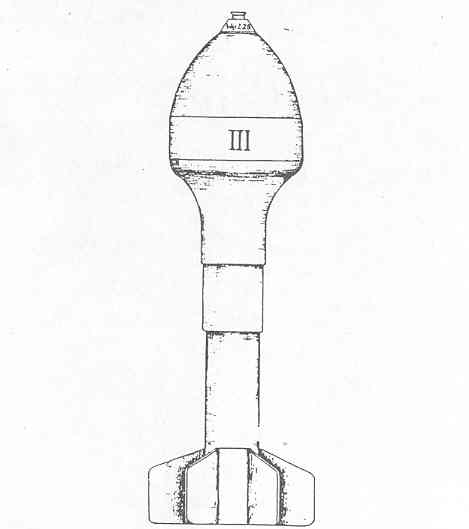

Example of Mortar Smoke Shell |
20 cm Mortar Smoke Shell, Type 40 |
(I–F–6) |
