GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section F - MORTAR SMOKE AMMUNITION |
I–F–3 |
8 cm MORTAR SMOKE SHELL, TYPE 38 Deut. |
CALIBER: | 8 cm |
GERMAN DESIGNATION: | Wgr. 38 Deut |
OVERALL COLOR: | Field-gray |
MARKINGS: | Fuze | Wgr.Z. 38 (Stamped) |
Body | Blau (Stencilled in black) | |
III (Stencilled in black) | ||
Deut (Stencilled in black) |
TAIL FINS: | 12 |
CHEMICAL FILLING: | |
LENGHT OF PROJECTILE: | (fuze included) 13 inches |
NOTES: |
On bursting, this shell gives a cloud of blue smoke which serves as a marker or indicator. |
I–F |

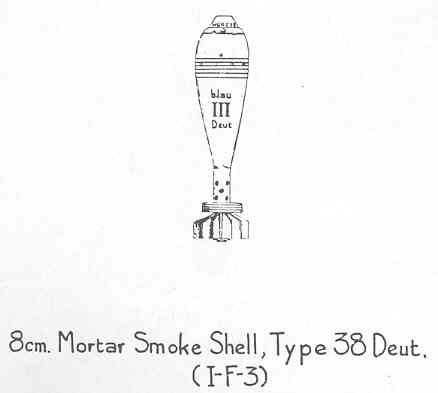

Example of Mortar Smoke Shell |
