| GERMAN CHEMICAL WARFARE MATERIAL |
| Part I - GROUND WEAPONS AND AMMUNITION |
| Section C - MORTAR CHEMICAL WARFARE AMMUNITION |
|
I–C–1 |
| 10 cm MORTAR CHEMICAL SHELL, TYPE 35 St. |
|
ONE YELLOW RING |
| CALIBER: | 10 cm |
| GERMAN DESIGNATION: | Wgr. 35 Nb. St. Gelbring |
| OVERALL COLOR: | Olive-green |
| MARKINGS: | Fuze | Wgr.Z. 38 (Stamped) |
| Body | Gb (Stencilled in yellow) | |
| G/B (Stencilled in yellow) | ||
| Gb. G/B 36/38 (Stamped) | ||
| One yellow ring (Stencilled) | ||
| Base | One yellow circle (Stencilled) |
| TAIL FINS: | 8 |
| CHEMICAL FILLING: | 3.3 pounds of H/PD (liquid) |
| LENGHT OF PROJECTILE: | (fuze included) 17.1 inches |
| WEIGHT OF PROJECTILE: | (fuze included) 15.4 pounds |
| PACKING CASE LABEL: | 10 cm Wgr. 35 Nb. St. |
| Gelbring | |
| Wgr.Z. 38 | |
| Gew. Kl. III |
| NOTES: |
This projectile body is the standard German 10 cm Wgr. 35 Nb. St. steel body, booster, burster and burster well (I–F–4). The carrier consists of a cylindrical cardboard container with a hinged metal lid and a metal base cover, the latter containing a recess to protect the projectile fuze. |
|
I–C–1 |

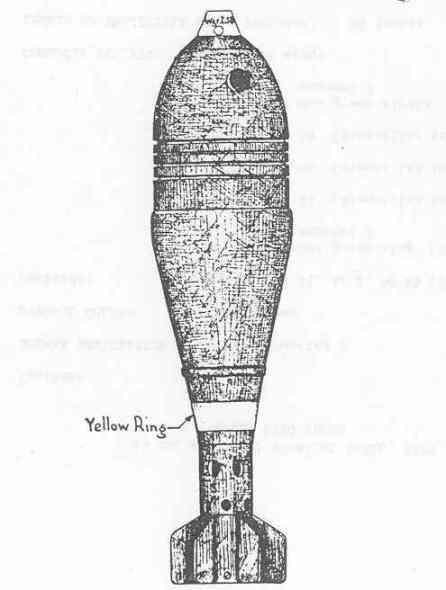

| 10 cm Mortar Chemical Shell, Type 35 St, |
| One Yellow Ring |
 |
|
|
