ALLIED BOMBS AND FUZES |
BRITISH BOMBS - SECTION 2 |
Bomb Data |
File No.: 1276.1 |
Nationality: British |
Information Data: October 1942 |
SIZE: |

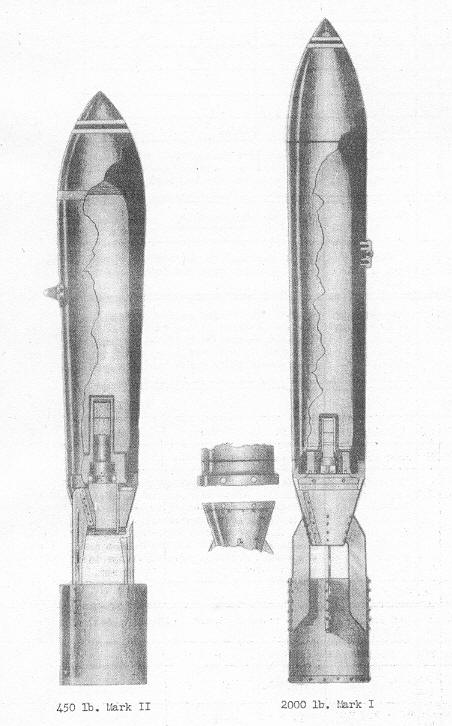

450 lb. Mark II |
TYPE: |
A.P. - H.E. |
|
2000 lb. Mark I |
|
|
TARGET: |
Armor-plated objects such as battleships and other heavy naval craft; reinforced concrete and heavy street construc-tion. |
FUZES (Tail): |
450 lb. |
|
DATA |
450 lb. Mark II |
2000 lb. Mark I |
|
1 |
OVERALL LENGTH |
65.2 inches |
112.7 inches |
2 |
LENGTH OF BODY |
43.0 inches |
79.5 inches |
3 |
DIAMETER OF BODY |
9.2 inches |
13.5 inches |
4 |
THICKNESS OF WALL |
1.6 inches |
Approx. 2.0 inches |
5 |
MATERIAL OF WALL |
Steel |
Steel |
6 |
CONSTRUCTION OF BODY |
These bombs are constructed of very heavy, slightly streamlined steel forgings. A cast steel tail adapter is scre-wed into the rear of the bomb to hold the fuze and exploder tube. |
7 |
TYPE OF SUSPENSION |
These bombs are suspended horizontally. |
8 |
CONSTRUCTION OF SUSPENSION LUG |
A heavy U-shaped eyebolt is attached to the bomb case by six stud bolts. |
9 |
COLOR & MARKINGS ON BOMB AND TAIL |
The body and tail assembly are painted yellow with a green band around the largest diameter and a white band on each side of a red band around the nose. The 450 lb. bomb may have the word "Totryl" stencilled in three places below the green band. |
10 |
LENGTH OF TAIL |
34.7 inches |
|
11 |
WIDTH OF TAIL |
9.2 inches |
13.5 inches |
12 |
MATERIAL OF TAIL |
Aluminum alloy |
Aluminum alloy |
13 |
CONSTRUCTION OF TAIL |
The tail assembly consists of: A truncated cone held to the bomb body by a locking nut on the tail adapter; four vanes are rivetted to the cone and a reinforced cylinder is rivet-ted to the vanes. |
14 |
WEIGHT OF TAIL |
|
15 |
TYPE OF FILLING |
Filling is Trotyl (T.N.T.) |
The filling of this bomb is Shellite (a mixture of picric acid and dinitrobenzene). |
16 |
WEIGHT OF FILLING |
46.0 lbs. |
167.0 lbs. |
17 |
TOTAL WEIGHT OF BOMB |
427.0 lbs. |
2000.0 lbs. |
18 |
CHARGE/WEIGHT RATIO |
11.0% |
8.0% |
