ALLIED BOMBS AND FUZES |
BRITISH BOMBS - SECTION 2 |
Bomb Data |
File No.: 1264.1 |
Nationality: British |
Information Data: October 1942 |
SIZE: |

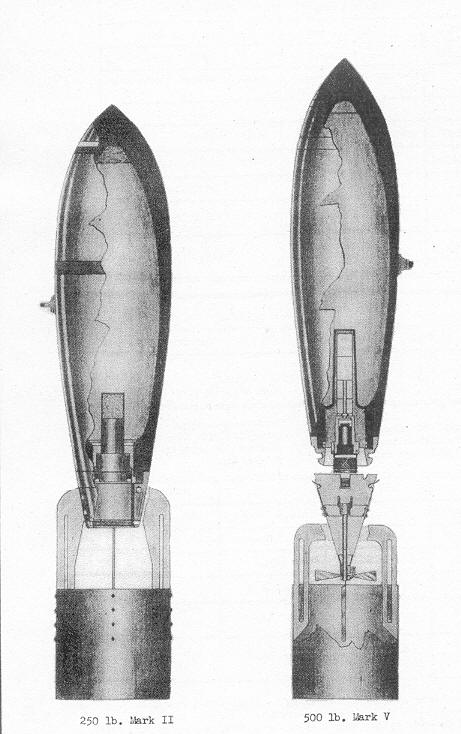

250 lb. Mark II |
TYPE: |
S.A.P.-H.E. Bomb |
|
250 lb. Mark V |
|
|
500 lb. Mark II | |||
|
500 lb. Mark V |
|
|
TARGET: |
Naval seacraft reinforced concrete or steel con-struction |
FUZES (Tail): |
Mk. II |
|
DATA |
Mark II |
Mark V |
|||
250 lb. |
500 lb. |
250 lb. |
500 lb. |
||
1 |
OVERALL LENGTH |
49.5" |
62.2" |
49.3" |
62.0" |
2 |
LENGTH OF BODY |
32.0" |
40.0" |
31.3" |
41.6" |
3 |
DIAMETER OF BODY |
9.2" |
11.5" |
9.2" |
11.5" |
4 |
THICKNESS OF WALL |
||||
5 |
MATERIAL OF WALL |
Steel |
Steel |
Steel |
Steel |
6 |
CONSTRUCTION OF BODY |
The body of these bombs is a streamlined steel casting or forging with a tail adapter screwed into the rear of the bomb case to hold the exploder tube. |
7 |
TYPE OF SUSPENSION |
These bombs are suspended horizontally. |
8 |
CONSTRUCTION OF SUSPENSION LUG |
A U-shaped eyebolt is fastened to the bomb body by four cap screws in a position near the center of gravity. |
9 |
COLOR & MARKINGS ON BOMB AND TAIL |
The bomb body and tail are painted yellow. There is a green band around the body at the greatest diameter with a red and a white band around the nose. The word "Trotyl" (T.N.T.) will be found stencilled in three places below green band. |
10 |
LENGTH OF TAIL |
18.1" |
20.4" |
||
11 |
WIDTH OF TAIL |
9.2" |
11.5" |
9.2" |
11.5" |
12 |
MATERIAL OF TAIL |
Mild steel and cast steel. |
13 |
CONSTRUCTION OF TAIL |
The tail assembly consists of: A cast steel locking ring fastened to the rear of the body; four vanes of mild steel reinforced by a steel cylinder rivetted to the vanes. |
The tail assembly consists of: A mild steel cone faste-ned to body by four spring clips; four vanes rivetted to the cone and a steel cylinder rivetted to the vanes. |
14 |
WEIGHT OF TAIL |
|
15 |
TYPE OF FILLING |
The filling of these bombs is normally Trotyl (T.N.T.) |
16 |
WEIGHT OF FILLING |
47.0 lbs. |
92.0 lbs. |
||
17 |
TOTAL WEIGHT OF BOMB |
239.0 lbs. |
479.0 lbs. |
||
18 |
CHARGE/WEIGHT RATIO |
19.7% |
19.2% |
