ALLIED BOMBS AND FUZES |
BRITISH BOMBS - SECTION 2 |
Bomb Data |
File No.: 1255.1 |
Nationality: British |
Information Data: October 1942 |
SIZE: |

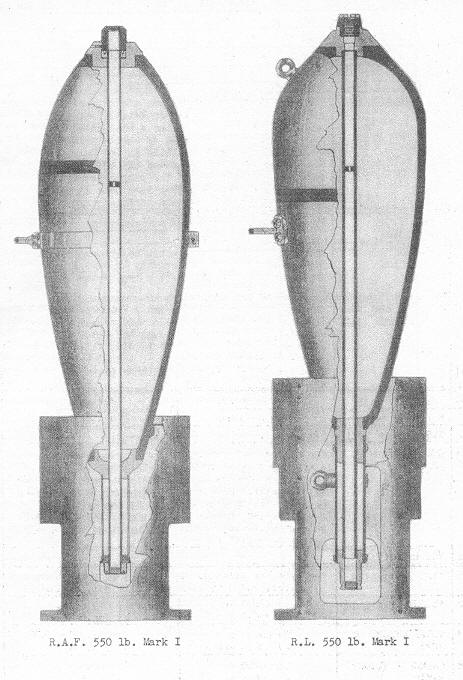

R.A.F. 550 lb. Mark I |
TYPE: |
G.P.-H.E. Bomb |
|
R.L. 550 lb. Mark I |
|
|
TARGET: |
General Bombardement |
FUZES: |
R.A.F. (Nose): |
|
|
|
R.L. (Nose): |
|
|
|
Both (Tail): |
|
DATA |
R.A.F. Mark. I |
R.L.Mark. I |
|
1 |
OVERALL LENGTH |
61.1 inches |
60.8 inches |
2 |
LENGTH OF BODY |
46.5 inches |
42.0 inches |
3 |
DIAMETER OF BODY |
15.0 inches |
15.0 inches |
4 |
THICKNESS OF WALL |
0.9 inch |
0.9 inch |
5 |
MATERIAL OF WAL |
Steel |
Steel |
6 |
CONSTRUCTION OF BODY |
Bomb body is constructed of a streamlined single-piece, steel casting threaded at the nose and tail to receive the adapters which hold the central exploder tube in position. |
7 |
TYPE OF SUSPENSION |
These bombs are always suspended horizotally. |
8 |
CONSTRUCTION OF SUSPENSION LUG |
A U-shaped eyebolt is rivet-ted to a suspension band passing around the body of the bomb. |
A U-shaped eyebolt is atta-ched to the body near the center of gravity by four cap screws or bolts. |
9 |
COLOR & MARKINGS ON BOMB AND TAIL |
The bomb case and tail assembly are painted yellow; the bomb case having a green band around the largest diameter and a red band around the nose. If the filling is T.N.T., "Totryl" is stencilled in three places on the green band or if Amatol is used, the fraction "80/20" appears in three places on the green band. |
10 |
LENGTH OF TAIL |
21.0 inches |
24.0 inches |
11 |
WIDTH OF TAIL |
15.0 inches |
15.0 inches |
12 |
MATERIAL OF TAIL |
Mild steel |
Mild steel |
13 |
CONSTRUCTION OF TAL |
The tail assemblies for these are very similar differing only in profile of tail cylinder and in the method of attaching as-sembly to bomb case. The tail consists of four vanes atta-ched to a clamping band (R.A.F. Mk.) or rivetted to the tail adapter; a cylinder around the vanes, the cylinder having cut-out sections; and stiffening rings at top and bottom of cylinder. |
14 |
WEIGHT OF FILLING |
|
15 |
TYPE OF FILLING |
Two types of fillings may be used
in these bombs: |
16 |
WEIGHT OF FILLING |
1) 157.0 lbs. |
|
17 |
TOTAL WEIGHT OF BOMB |
1) 523.0 lbs. |
|
18 |
CHARGE/WEIGHT RATIO |
1) 30.0% |
