ALLIED BOMBS AND FUZES |
BRITISH BOMBS - SECTION 2 |
Bomb Data |
File No.: 1254.3 |
Nationality: British |
Information Data: October 1942 |
SIZE: |
250 lb. Mark I |
TYPE: |
G.P.-H.E. |
|
500 lb. Mark I |
|
|
TARGET: |
General Bombardement |
FUZES: |
NOSE: |
|
|
|
TAIL: |
|
DATA |
250 lb. Mark I |
500 lb. Mark I |
|
1 |
OVERALL LENGTH |
54.1 inches |
68.7 inches |
2 |
LENGTH OF BODY |
28.0 inches |
35.7 inches |
3 |
DIAMETER OF BODY |
10.2 inches |
12.9 inches |
4 |
THICKNESS OF WALL |
0.6 inches |
7/8 inch |
5 |
MATERIAL OF WALL |
Steel |
Steel |
6 |
CONSTRUCTION OF BODY |

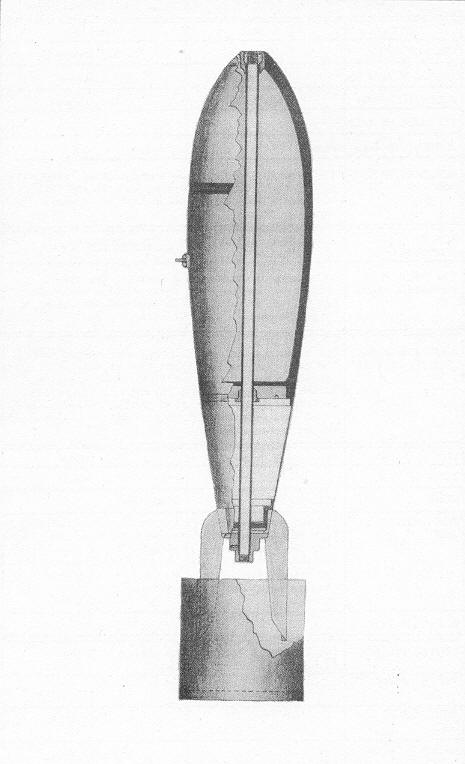

The bomb body consists of the following: a stream-lined steel casting or forging, threaded at the nose to take the nose adapter which holds the central exploder tube and at the other end of the casting is a threaded base plug through which the exploder tube passes; welded to the end of the casting is a streamlined section of thin metal, con-taining no explosives, but which is tapered to take the tail ring. The exploder passes through this section also. |
7 |
TYPE OF SUSPENSION |
These bombs are suspended horizontally. |
8 |
CONSTRUCTION OF SUSPENSION LUG |
U-shaped eyebolt is attached to body at center of gravity by cap screws. |
9 |
COLOR & MARKINGS OF BOMB AND TAIL |
The bomb case and tail assembly are painted yellow; the bomb case having a green band around the largest diameter and a red band around the nose. If the filling is T.N.T., "Trotyl" is stencilled in three places on the green band or if Amatol is used the fraction 80/20 appears in three places on the green band. |
10 |
LENGTH OF TAIL |
11 |
WIDTH OF TAIL |
10.2 inches |
12.9 inches |
12 |
MATERIAL OF TAIL |
Mild steel. |
Mild steel. |
13 |
CONSTRUCTION OF TAIL |
The tail is constructed of the following parts: a truncated cone which appears to be a casting, fits over rear section of bomb body and held to it by a lock nut over the exploder tube; four mild steel vanes are fastened to the cone and are reinforced by a cylinder rivetted to the vanes. |
14 |
WEIGHT OF TAIL |
|
15 |
TYPE OF FILLING |
Two types of filling may be used: 1) Trotyl (T.N.T.) or; 2) 80/20 Amatol. |
16 |
WEIGHT OF FILLING |
1) 67 lbs. |
1) 142 lbs. |
17 |
TOTAL WEIGHT OF BOMB |
1) 247 lbs. |
1) 508 lbs. |
18 |
CHARGE/WEIGHT RATIO |
1) 27% |
1) 28% |
