ALLIED BOMBS AND FUZES |
BRITISH BOMBS - SECTION 2 |
Bomb Data |
File No.: 1221.2 |
Nationality: British |
Information Data: October 1942 |
SIZE: |
4 lb. Mark I |
TYPE: |
Incendiary Bomb |
TARGET: |
Frame or non-fireproof construction |
FUZES (Nose): |
Simple impact fuze contained in rear of body |
|
DATA |
4 lb. Mark I |
||
1 |
OVERALL LENGTH |
21.5 inches |
|
2 |
LENGTH OF BODY |
||
3 |
DIAMETER OF BODY |
1.67 inches |
|
4 |
THICKNESS OF WALL |
approx. 0.5 inches |
5 |
MATERIAL OF WALL |
Chromated magnesium body with steel nose. |
6 |
CONSTRUCTION OF BODY |

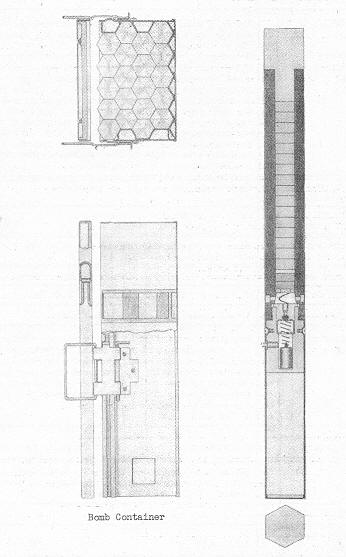

The body is constructed very similar to the American 4 lb. AN-M 50A1. The magnesium case is a hexagonal casting in which a blunt steel nose is secured. The rear of the magne-sium casting is threaded to receive the simple, impact fuze. |
7 |
TYPE OF SUSPENSION |
These bombs are carried in a case containing 20 bombs. Three of these cases can be loaded into a 250 lb. small bomb container which therefore carries 60 bombs. |
8 |
CONSTRUCTION OF SUSPENSION LUG |
There is no provision for individual suspension. |
9 |
COLOR & MARKINGS ON BOMB AND TAIL |
The body of the bomb is painted a dull red for a distance of 3.5 inches from the nose. In the center of dull red portion is painted a 1.5 inch black band and centrally over this is a ½ inch bright red band. Manufacturer's or filler's markings may be stencilled on bomb body. |
10 |
LENGTH OF TAIL |
|
11 |
WIDTH OF TAIL |
1.67 inches |
12 |
MATERIAL OF TAIL |
Tinned plate. |
13 |
CONSTRUCTION OF TAIL |
The tail assembly consists of a hexagonal tinned plate pressing with a male-type closing cap at the rear. The tail is secured to the fuze body by drive screws and has a side opening for the safety plunger. |
14 |
LENGTH OF TAIL |
|
15 |
TYPE OF FILLING |
The filling is an incendiary composition which melts the magnesium case. The case burns for about 10 minutes. |
16 |
WEIGHT OF FILLING |
6.75 oz. |
17 |
WEIGHT OF CASE |
Magnesium 1 lb. 9.5 oz. |
18 |
TOTAL WEIGHT OF BOMB |
3 lbs. 13.5 oz. |
19 |
CHARGE/WEIGHT RATIO |
26.4% |
