HANDBOOK OF ENEMY AMMUNITION |
PAMPHLET No. 6 |
JAPANESE GRENADES, MORTAR AMMUNITION AND H.E. SHELLS |
JAPANESE 70 MM H.E. SHELL |
(Fig. 23) |
The filled shell, without the fuze, weighs 7 lb. 15 oz. 8 drams and is 8.9 inches in length. |
The shell has a comparatively thin wall and is fitted with a copper driving band. There is no base plate. |
The bursting charge consists of 1.25 lb. of pressed T.N.T. which in quality corresponds approximately to "Grade 2". A cavity is formed in the charge to receive the steel burster container which is screwed into the fuze hole. |
The burster container has a felt disc at the bottom and contains an exploder consisting of a perforated picric acid pellet over two solid pellets of the same nature. These are en-closed in a paper container. The weight of the exploder is 22.7 drams. |
A copper container, to receive the magazine of the fuze, is inserted above the burster container and fits into the perforated pellet at the top of the exploder. |
The weight of the empty shell is 6.1 lb. |
Details of markings are not available. |

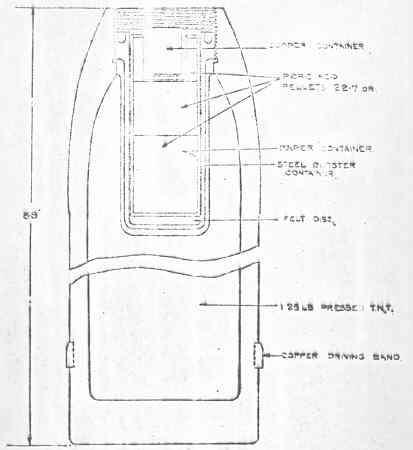

Fig. 23 |
Japanese 70 mm H.E. Shell |
|
